Fireproof Glazing Door
2021-05-20 848
Test Report:
Product Type, CCC Certificate and Report Number of Hengbao Glass Fire-proof Door
Model Specification | Name | Fire prevention level | Fireproof and heat insulation time | CCC Certificate number | Inspection Report |
QTFM-1023-bd6 A1.00（B Grade）-1 | Other Material Thermal Insulation Fire-proof Door | B Grade | 1.00h | 2016081806003217 | 201564237 |
QTFM-1823-bd6 A1.00（B Grade）-2 | Other Material Thermal Insulation Fire-proof Door | B Grade | 1.00h | 2016081806003216 | 201564234 |
QTFM-2123-bd6 A1.00（B Grade）-2 | Other Material Thermal Insulation Fire-proof Door | B Grade | 1.00h | 2016081806003215 | 201564236 |
QTFM-2130-bd5 A1.00（B Grade）-2 | Other Material Thermal Insulation Fire-proof Door | B Grade | 1.00h | 2016081806007525 | 201668213 |
QTFM-1023-bd6 A1.50（A Grade）-1 | Other Material Thermal Insulation Fire-proof Door | A Grade | 1.50h | 2016081806003214 | 201564238 |
QTFM-1823-bd6 A1.50（A Grade）-2 | Other Material Thermal Insulation Fire-proof Door | A Grade | 1.50h | 2016081806007524 | 201668214c |
QTFM-2230-bd5 A1.50（A Grade）-2 | Other Material Thermal Insulation Fire-proof Door | A Grade | 1.50h | 2018081806009778 | 2018601998 |
QTFM-1826-bd5 A1.50（A Grade）-2 | Other Material Thermal Insulation Fire-proof Door | A Grade | 1.50h | 2019081806000179 | Gn201805342 |
Product Categories:
According to the fire resistance, the fire insulation door, part of the fire insulation door and the non-insulated fire door are separated. However, after the fire door is CCC certified, only the fire insulation door can be certified. According to the material, there has wood fire door, the steel fire door, Steel wood fire doors, other material fire doors, our glass fire doors belong to other material fire doors. According to fire prevention time is divided into half hour, 1 hour, 1.5 hours; according to fire level is classified as Class C, Class B, Class A .
Fire resistance of Class A insulating glass fire door:
Features:
1. Meet the fire protection requirements: the overall fire requirements , heat and insulation performance of 0.5, 1.0, 1.5, 2.0 hours;
2. It has special functions of fireproof, smoke-proof, high temperature blocking and automatic closing;
3. Meet the owner's simple, transparent, high-end decorating requirements;
4. Obtain CCCF certification for fire protection products approved by the national fire department.
5. A total of 8 products of Hengbao Company obtained the national 3C certification, including 2100mm x 3 000mm of super large-format glass fire door and 2200mm x 3 000mm of Grade A fire resistant fix window, which is the first product at China.
6. Choose the high-quality fire resistant glass.
7. stainless steel fire glass door can be painted according to customer requirements, and it can be plated with different colors (such as titanium, rose gold, bronze, etc.).
Product Usage:
It is used in high-end hotels, theaters, exhibition halls, airports, gymnasiums, hospitals, libraries, commercial buildings, office buildings and other public places. Widely used in the fire door at front room of the elevator and fire door at fire partition.
Product Node Diagram:

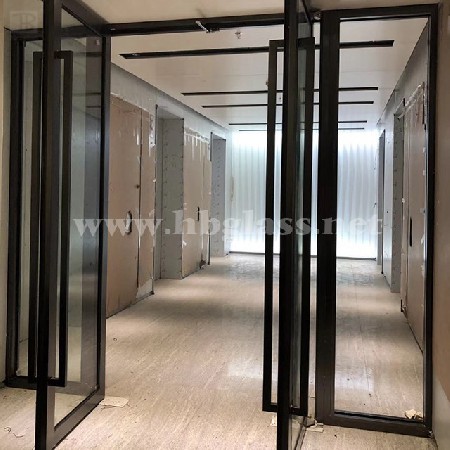

3 m high and super large size glass fire door
(The product is based on the actual selection of product node diagram)
